Signal Minder, 1970-1995

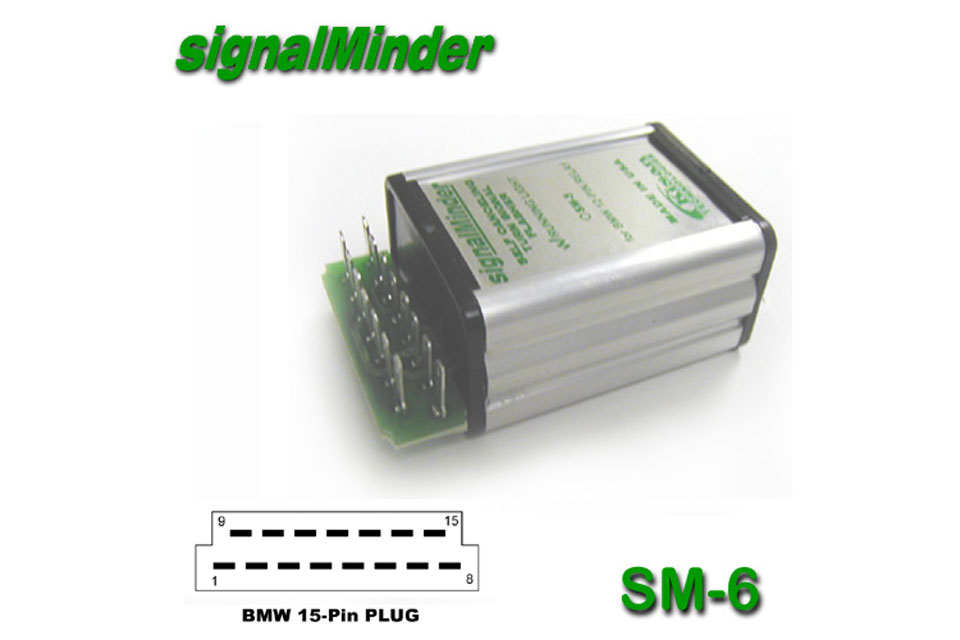

SM-6 unit is designed as a plug-in replacement for many BMW K-Bikes and earlier models with European wiring that have dual handlebar mounted turn signal switches. This unit has a matching 15-pin connector and replaces the original Delphi turn signal relay.
SM-6 operates all four turn signal
lamps at reduced intensity to enhance your visibility in the traffic.
This conversion is all done internally without any modifications to the
wiring. This optional feature can be enabled or disabled on the fly.
SM-6 has soft touch configuration. Soft touch configuration allows the timeouts and running light options to be changed on the fly.
SM-6 has ( 3 ) selectable timouts: 8 seconds, 30 seconds, and 45 seconds.
Built-in RUN-TURN-BRAKE functions
No need to buy other turn signal conversion product. You get all the features of RUN-TURN-BRAKE and automatic signal cancelling!
If you hook-up the 12 volt supply from the brakes, to the signalMinder brake input:
BRAKE FLASH OPTION will flash the turn signal lamps every time you apply brakes. A short 2 second flash pattern begins with quick flashes then slows down to stay on solid. This option can be programmed On or Off.
BRAKE OVERRIDE OPTION suspends the time-out feature until the brakes are released. This allows continued flashing for those times when you are waiting at the signals to make a turn and do not want the time-out to cancel the flashing.
FAST FLASH Lane Change
If you hold down the turn signal switch, turn signals will flash twice as fast for the first ( 4 ) times. This is an excellent feature to get immediate attention while changing lanes.
Instead of using your right thumb in that awkward motion to push up the Cancel button, simply push the Same-side button to stop flashing.
4-Way Emergency Flash Push both right and left buttons simultaneously to begin 4-Way flash. To stop, use the right side Cancel button.
The last thing you need is to worry about canceling the turn signals! Use all of the built-in options of the signalMinder and enjoy the ride.
signalMinder has an add-on product known as vectraLIGHT. These LED arrays simply plug into the signalMinder and inherit all of it's features. They are designed to mount under the turn signal mirrors.
